TH10 WiFi smart switch & TH (Si7021) 10A

  • Kliknite za uvećanje
  • Kliknite za uvećanje
  • Kliknite za uvećanje
TH10 WiFi smart switch & TH (Si7021) 10A

Tap for gallery

x.xxkn

Login to view price


Informacije o proizvodu
Specifikacija

Overview

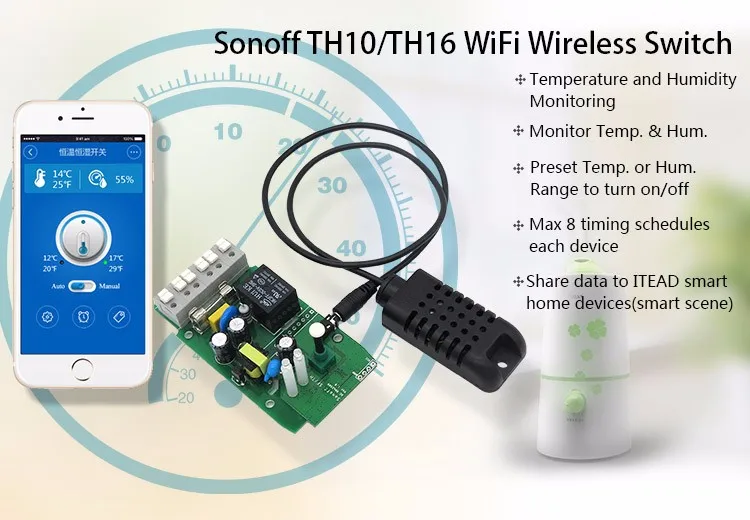

Sonoff TH10/TH16 is a Sonoff version smart switch that can monitor and set temperature and humidity through the APP eWeLink. Just as the name indicated, the new version Sonoff TH device supports two power supply specifications: 10A or 16A. It supports preset a temperature and humidity range, when the temperature and humidity of the environment fall into the range, it will automatically turn on or turn off connected devices.

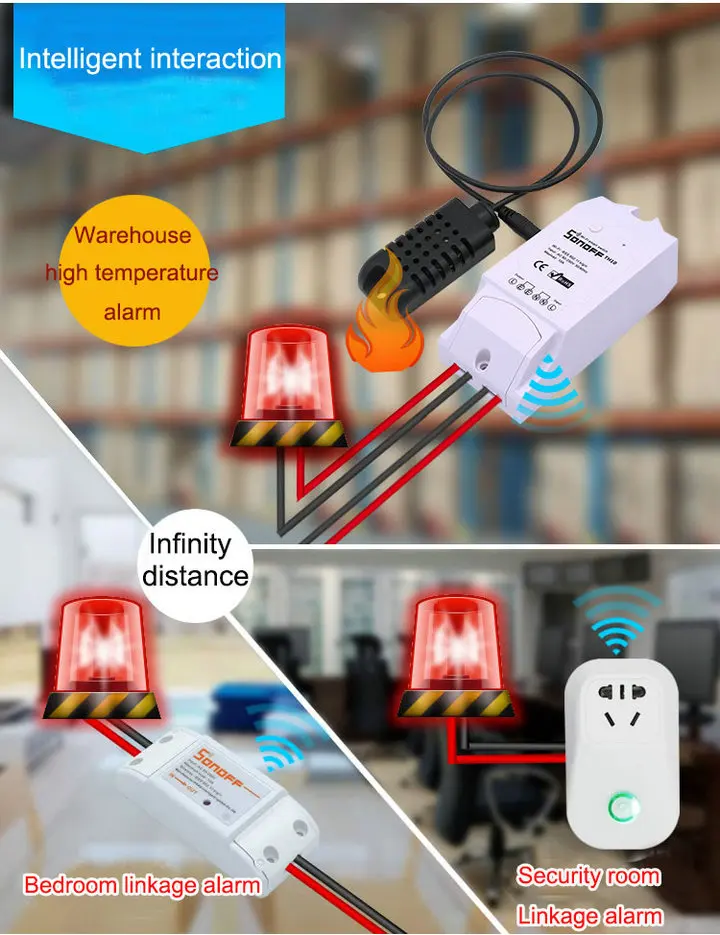

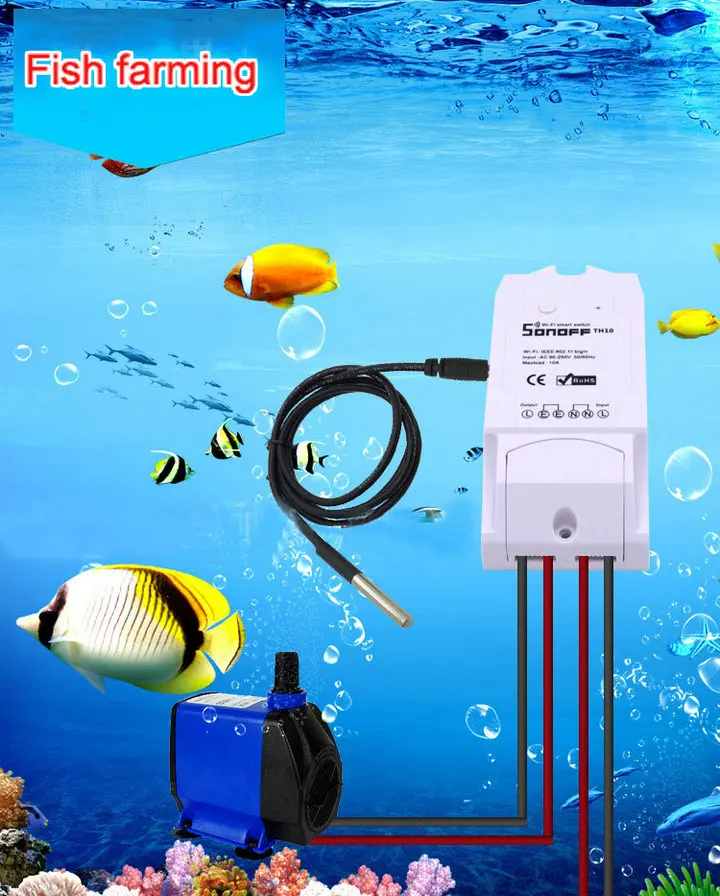

The device supports connecting to three kinds of temperature and humidity sensors (AM2301, DS18B20, DHT11). Actually, Sonoff TH 10/16 can work as a Sonoff when without connecting to sensors. But compared to Sonoff, Sonoff TH10/TH16 is more safer, less radiation and in bigger size, easy operation. Most importantly, with the support of latest ewelink app, you can create chains of simple conditional statements(Smart Scene).  This means you can use Sonoff TH10 or Sonoff TH16 with temperature and humidity sensors (AM2301, DS18B20, DHT11) to collect temperature data, while the temperature data can be shared to some ITEAD smart home devices(Sonoff, Sonoff RF, Sonoff SV, smart socket) under your account, thus other devices set up a temperature condition to turn on/off connected appliances, this is called Smart Scene(see below pic). This device is perfect to work with electric fan, air conditioner, humidifier, smart fish tank, watering system.

Features

Supports 90~ 250V AC input

Support max 10A /16A input

Power: 2200W(10A) /3500W(16A)

Support fast configure SSID and password connection through APP

Support automatic connect to server, register and update status info.

Support tracking device status and timely remote control through APP

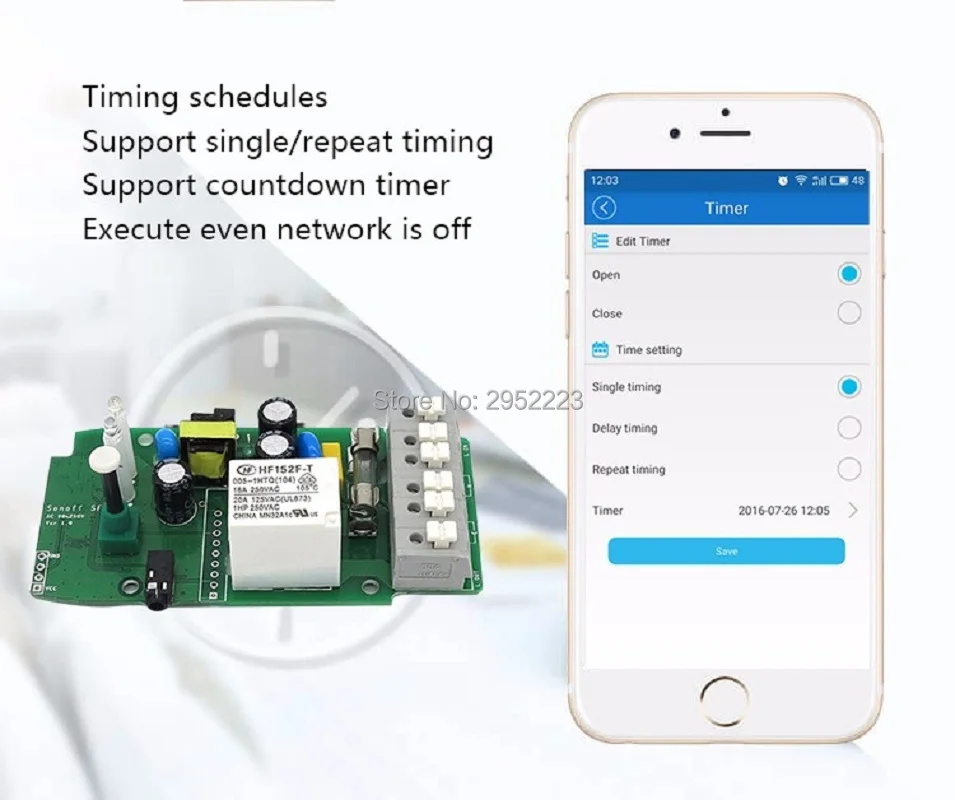

Support setting countdown, single and repeat  timing tasks

Support real-time temperature and humidity displaying

Support 3 temperature and humidity sensors (AM2301, DS18B20, DHT11)

Support preset temperature and humidity to turn on/off

Support group management, scene, smart scene

TH10 combination1:1pcs Sonoff TH 10A+1pcs  temperature and humidity minitoring

TH10 combination2:1pcs Sonoff TH 10A +1pcs Temperature and humidity minitoring +1pcs  Waterproof temperature probe

TH16 combination1:1pcs Sonoff TH 16A +1pcs temperature and humidity minitoring

TH16 combination2:1pcs Sonoff TH 16A +1pcs Temperature and humidity minitoring +1pcs  Waterproof temperature probe

WiFi Charateristics

802.11 b/g/n

Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS

Built-in TCP/IP protocol stack

Built-in TR switch, balun, LNA, power amplifier and matching network

Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power

A-MPDU&A-MSDU aggregation and 0.4μs guard interval

WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode

Support cloud OTA upgrade

Support STA / AP / STA + AP mode

Standby power consumption is less than 1.0 mW (DTIM3)

Operating temperature range: -40 ℃ - 125 ℃

DMX TH16-1

aeProduct.getSubject()aeProduct.getSubject()11aeProduct.getSubject()aeProduct.getSubject()

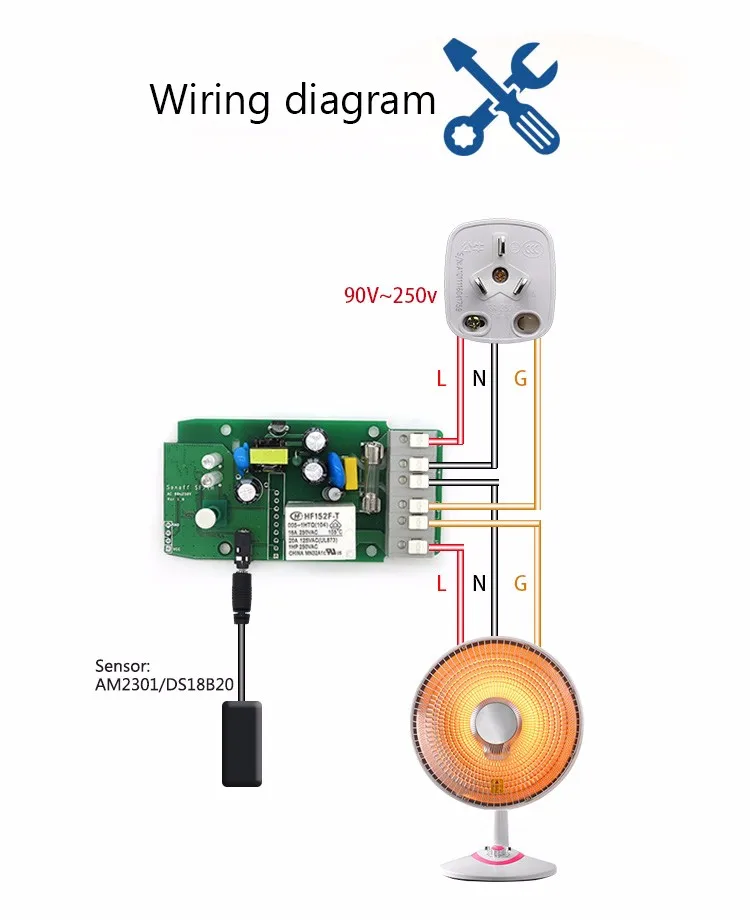

We are selling two kinds of sensors: AM2301 and DS18B20(measure temperature only). We've customize an interface for Sonoff TH10/TH16 to easily connect with the sensor, just plug and play. Note that the sensor should be plug before power up, don't plug or

unplug the sensor in power on state. AM2301 is non-waterproof, while DS18B20 can work in water.

Useful Links:



User Manual for Sonoff TH WiFi Wireless Switch

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()1211



8

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

1RF1111151

Product CodeTH10 TH (Si7021)
StanjeNovo
Težina0.5kg
